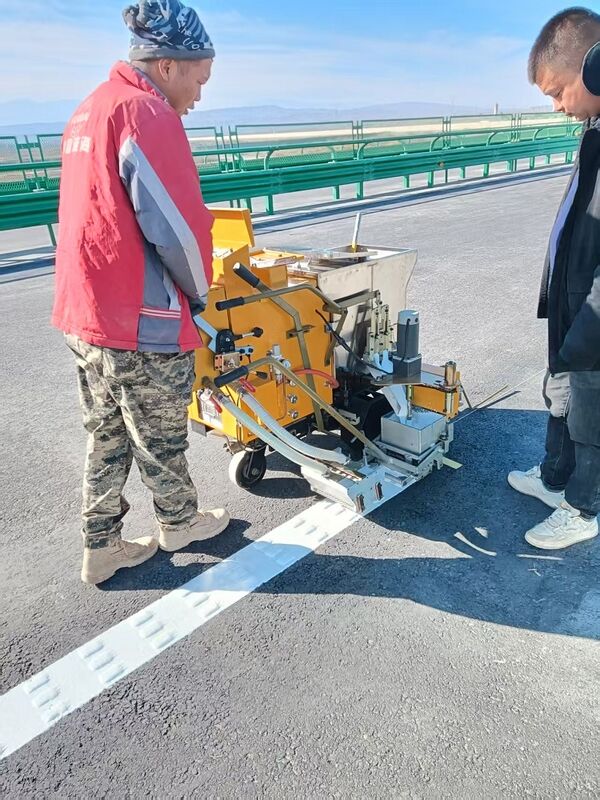

Two Components 2K Raised Line / Rib Line Road Marking Machine- battery pushing

Name: Two Components 2K Raised Line / Rib Line Road Marking Machine- battery pushing
Brand: Xian WAGE Traffic Infrastructure Installation Co., Ltd.
SKU: HG-SVM
Price: 6,500.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: WAGE

Sertifikasi: EMS， OHSMS

Nomor model: HG-SVM

Dokumen: Brosur Produk PDF

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: 5000-8000usd per set

Kemasan rincian: Kotak

Waktu pengiriman: 1 hingga 3 minggu

Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram

Menyediakan kemampuan: 10 set per minggu

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            2K raised line road marking machine, battery pushing road marking machine, two component rib line marker


model penandaan:	dua komponen garis cembung	Dispenser:	Jatuh sendiri
volume silinder cat:	30L*2	silinder kaca:	10L
Ukuran:	14008001100mm	Bahan:	Baja Tahan Karat
Nama Produk:	Mesin Marka Jalan Dua Komponen	Ketebalan:	1.2-3.0mm
Menandai lebar:	50-500mm	Berat:	200kg
Dispenser:	menjatuhkan diri

model penandaan:	dua komponen garis cembung
Dispenser:	Jatuh sendiri
volume silinder cat:	30L*2
silinder kaca:	10L
Ukuran:	14008001100mm
Bahan:	Baja Tahan Karat
Nama Produk:	Mesin Marka Jalan Dua Komponen
Ketebalan:	1.2-3.0mm
Menandai lebar:	50-500mm
Berat:	200kg
Dispenser:	menjatuhkan diri

Deskripsi

Two Components 2K Raised Line / Rib Line Road Marking Machine- battery pushing

Two Components 2K Raised Profile Line Road Marking Machine

Product Specifications

Attribute	Value
Marking Model	Two components convex line
Dispenser	Self dropping
Paint Cylinder Volume	30L*2
Glass Cylinder	10L
Dimensions	14008001100mm
Material	Stainless Steel
Product Name	Two Component Road Marking Machine
Spray Thickness	1-4mm
Spray Width	50-400mm
Weight	200kg

Product Overview

Convex line two component road line marking machine

General information: Two-component marking series is divided into spraying and scraping two construction processes. Two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of environmental protection, high wear resistance, good reflectivity, long service life and easy construction.

HG-20MM-II puts two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of thicker marking thickness, longer wear resistance, better reflectivity and more uniform mixing.

Technical Parameters

Parameter	Specification
Marking mode	2K convex line
Agitation speed	650r/min
Glass Micro sphere cylinder capacity	25kg
Spraying system	Self dropping
Paint cylinder capacity	60L/tank x 2
Marking thickness	1.2-2.5mm adjustment within ranges
Standard width	150mm
Width optional	100/200/300/400/450mm (scoops replacement)
Size (LWH)	12009001100mm
Weight	200kg

Construction
